Distil uses JavaScript to collect data and send it in JSON data packets to Distil. This JavaScript code is the core of all Distil Tracking activity, whether you have installed Tracking via the Distil Shopify app or edited your website's HTML as described below.
This approach of adding a JavaScript code snippet to websites is used by many trusted platforms online, including Google Analytics, Facebook, Twitter, Pintrest and many others. It's a safe and widely used method of collecting Tracking data.
This article explains how to manually edit your site's HTML to add Distil JavaScript Tracking. If you haven't already, read our Introduction to Tracking for an overview of set-up options. If you have installed the Distil Shopify app then make sure you have completed the Tracking set-up for Shopify before making any further changes as described below.
There are two steps to setting up Distil JavaScript Tracking:
- Install the Distil Distil JavaScript Tracking Code, and then
- Add Distil Event Tracking Calls to individual pages and events.
Install the Distil JavaScript Tracking Code
The Code

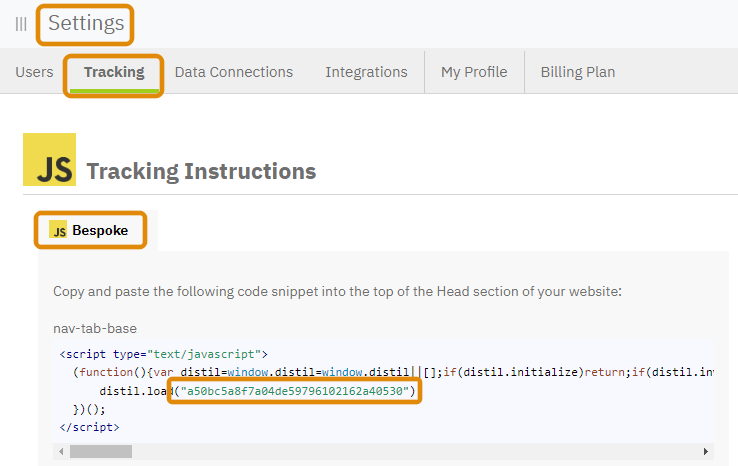

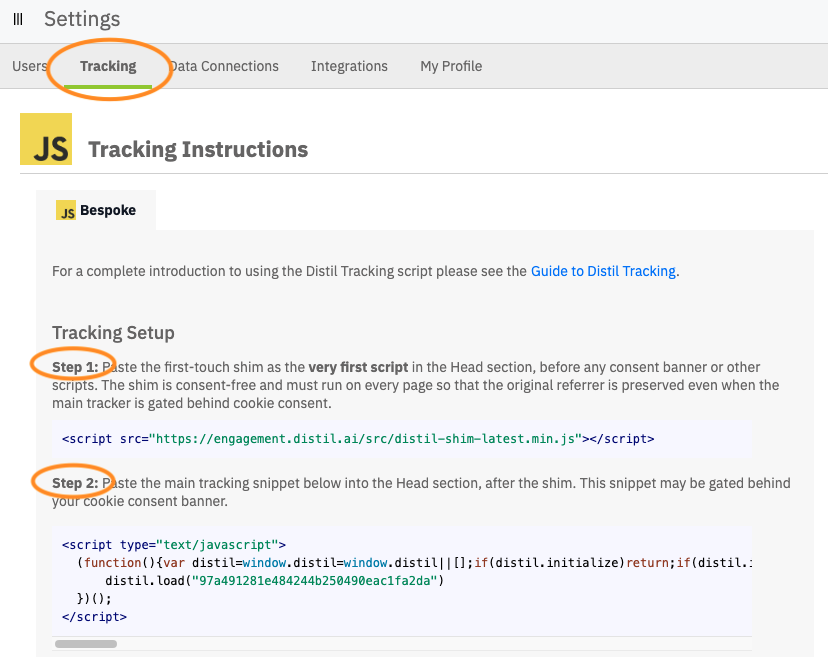

We've already written the code snippet for you, so you can just copy and paste it. The code is in Settings > Tracking > JS Bespoke tab. The script includes a unique 32-character identifier for your Distil Account, so take care not to modify this value.
Where To Put the Code
We recommend that the JavaScript code is inserted into the Head section of the HTML within each page on your website. This means that Distil Tracking will be initialised as soon as the page is loaded.
Alternatively, the JavaScript code can be included in the Body section. However, if users click away from the page before the JavaScript code initialises Distil Tracking, then this may result in some Tracking data being lost.
Adding the JavaScript Tracking code is straightforward if you're using a Content Management System (CMS) such as Wordpress, Squarespace, Magnolia or Weebly. Search online for instructions for your specific CMS.
Using the Code
Once the Tracking code is on a web page as described above, capturing Tracking data is a matter of calling the correct tracking event function at the correct time. The section below explains how to use the various functions, including the properties that they return.
Context Object
In addition to returning the properties of the called function, the JavaScript Tracking code will also automatically capture additional contextual information. This information includes the page that the user is on, their IP address, the referring URL and the time of the event. These pieces of information are stored in the Context object.
Here's an example of the Context object:
"Context”: {
"DistilAccountId": "f1a2df172a8045489d95cf4658bd60ba",
"AnonymousUserID": "598b0746-a073-4ac6-aa68-808ec3f6df68",
"Device Information": "Mozilla/5.0 (Macintosh; Intel Mac OS X 11_2_3) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/89.0.4389.114 Safari/537.36",
"EventTimestampUTC": "2021-04-13 16:26:12",
"EventTimestampLocal": "2021-04-13 17:26:12",
"PageTitle": "Product 2",
"PageUrl": "http://www.fakesite.com/product-2",
"ReferrerUrl": "http://www.fakesite.com/product-1",
"IpAddress": "86.161.138.123"
}
The JavaScript Tracking code will automatically create a unique identifier called AnonymousUserID for each user visiting the site, and store this information in the browser's local storage (Distil does not use cookies). You can see this ID in the example object above. The same ID will be used to identify the user each time they visit, ensuring that the entirety of their behaviour is tracked and tied to a single Customer: from a first anonymous visit through to multiple purchases. For more information, read our article on how Distil identifies Customers.
Data Types
The following are the data types that are accepted by the Distil JavaScript Tracking code, in the JSON object property blocks.
Type | Description | Example |
String | Any combination of characters surrounded by double quotes (double quotes are always recommended rather than a single quote). There should not be any line return characters contained within the string. | "Title" : "This is a string" |
Boolean | A true or false value – without quotes | "Available" : true |
Decimal | A numerical value with a decimal point. | "Amount" : 12.34 |
Integer | A numerical value representing a whole number | "Age" : 23 |
Date (String) | A DateTime represented as a string in the following format : yyyy-MM-dd HH:mm:ss | "expirydate" : "2021-09-17 10:00:00" |
Add Distil Event Tracking Calls
The following event functions are available in the Distil Tracking code:
Track Page
By default - each time a new page is loaded and the Distil tracking code is embedded in the page, then the trackPage function will be invoked automatically. This function will only pass the Context information for the current page.
Call the trackPage function:
distil.trackPage();
Single Page Applications
For single page applications where the URL does not change, then by default the page does not reload, and therefore trackPage is not being called on each refresh. Therefore, it is up to the owner of the site to implement the call to this function each time the page changes.
Also - as the page URL does not change, then in order to track the virtual path, it is possible to pass in the path of the current page manually in the tracking like so:
distil.trackPage({pageUrl: '/newpath'});
There are some caveats around how this works and what is allowed to be entered into this property, as described in the section: Overriding Current Page Path
Identify Customer
When a user is browsing the site, their browsing history is tied to their AnonymousUserID. When this user identifies themselves explicitly by logging in or filling in a form with personal details, Distil captures this identifying information via the identifyCustomer event function and ties it to that person's browsing history via their AnonymousUserID (for more information, read our article on how Distil identifies Customers).
The identifyCustomer event function needs to be added to all pages where visitors identify themselves by logging in or filling in a form with personal details.
When this event function is called, the Distil Tracking code will also automatically pass a Context object as explained in the section above.
Call the event function:
distil.identifyCustomer(customerProperties, [additionalOptions]);
Pass the following argument to the function:
Argument | Data Type | Description |
customerProperties | JSON Object |
A JSON Object containing all of the Customer properties that you wish to record, whether these are standard or custom. Distil will automatically try to recognise the properties sent based on the Property Name (see table below). Any properties that Distil does not recognise will be saved against the Customer and will be available within Distil as Custom Attributes. |
additionalOptions | JSON Object |
See Additional Object Properties section below for further details |
CustomerProperties Object properties
Note that customerProperties is required when using the identifyCustomer event function - and specific fields are required to be sent with each identifyCustomer request. A minimum of either the CustomerId OR the EmailAddress are required in order to identify the Customer to Distil (passing both is perfectly valid and encouraged if the CustomerId is unique) plus the current Marketing Subscribed status for the user.
Property Name | Type | Description | Mandatory within identifyCustomer | Mandatory within other functions |
CustomerId | String | ID of the Customer | Yes* | Yes* |
EmailAddress | String | Email Address for the Customer | Yes* | Yes* |
GDPRStatus | JSON | GDPRStatus Object – see definition below for object properties below | Yes | No |
FirstName | String | The Customer’s First Name | No | No |
LastName | String | The Customer’s Last Name | No | No |
FacebookSlug | String | The URI to the customer facebook profile | No | No |
TwitterHandle | String | The URI to the customer twitter profile | No | No |
InstagramHandle | String | The URI to the customer instagram profile | No | No |
PostalAddress | JSON | PostalAddress Object – see definition below for object properties below | No | No |
GDPRStatus Object properties
Note that some of the properties of GDPRStatus are mandatory.
Property | Type | Description | Mandatory |
MarketingSubscribed | Boolean | Whether the user has opted in | Yes |
RightOfAccessRequested | Boolean | Whether the user has been asked to opt in | No |
DataAnonymization | Boolean | Whether the user has asked for their data to be anonymised | No |
PostalAddress Object properties
Property | Type | Description | Mandatory |
Line1 | String | Customer’s Address Line 1 | No |
Line 2 | String | Customer’s Address Line 2 | No |
Line 3 | String | Customer’s Address Line 3 | No |
Town | String | Customer’s Address Town | No |
Region | String | Customer’s Address Region | No |
Country | String | Customer’s Address Country | No |
Postcode | String | Customer’s Address Postcode | No |
Examples
Examples of a call with only mandatory fields:
1. With Customer ID
let customerProperties = {
CustomerId: '1234',
GDPRStatus: {
MarketingSubscribed: true / false
}
}
distil.identifyCustomer(customerProperties);
2. With Email Address
let customerProperties = {
EmailAddress: 'user@yourcompany.com',
GDPRStatus: {
MarketingSubscribed: true / false
}
}
distil.identifyCustomer(customerProperties);
3. Or With Both CustomerID and Email Address
let customerProperties = {
CustomerId: '1234,
EmailAddress: 'user@yourcompany.com',
GDPRStatus: {
MarketingSubscribed: true / false
}
}
distil.identifyCustomer(customerProperties);
Track Product
When a user views a single product page on the website, this information can be captured using the trackProduct event function, which needs to be added to all pages where this type of activity occurs.
When this event function is called, the Distil Tracking code will also automatically pass a Context object as explained in the section above.
Call the event function:
distil.trackProduct(productProperties, customerProperties, [additionalOptions]);
Pass the following arguments to the function:
Argument | Data Type | Description |
productProperties | JSON Object |
A JSON Object containing all of the product properties that you wish to record, whether these are standard or custom. Distil will automatically try to recognise the properties sent based on the Property Name (see table below). Any properties that Distil does not recognise will be saved and will be available within Distil as Custom Attributes. |
customerProperties | JSON Object |
A JSON Object containing all of the other Customer properties to record for this event. The customerProperties object is not mandatory and can be omitted, but if the object is supplied then at least one of the identifying properties for the Customer must be included (CustomerId or EmailAddress). See the CustomerProperties Object properties section above for details of this object. Note that when used within this function, customerProperties does not support custom properties: any properties that do not match the standard Property Names will be discarded and not saved. |
additionalOptions | JSON Object |
See Additional Object Properties section below for further details |
ProductProperties Object properties
Note that some of the properties of ProductProperties are mandatory.
Property Name | Type | Description | Mandatory |
ProductId | String | The Product ID | Yes |
Name | String | The name of the Product | Yes |
Precis | String | The description of the product | No |
ThumbnailUrl | String | The URI to a thumbnail image for the product | No |
FullImageUrl | String | The URI to a full size image for the product | No |
ProductShopUrl | String | The URI to the product in the shop / store | No |
Categories | String | A comma delimited list of the categories the product belongs to | No |
Available | Boolean | A boolean indicating whether the product is currently available | No |
ListPriceExTax | Decimal | The price of the product with no tax | No |
ListPriceIncTax | Decimal | The price of the product including tax | No |
Currency | String | The 3 letter currency code | No |
PriceBreaksDesc | String | This is only used in the case of building campaigns directly from this data so can be formatted as you wish | No |
Examples
Example of call with only mandatory fields:
let productProperties = {
ProductId : 'Prod1234',
Name: 'Product Name goes here'
}
distil.trackProduct(productProperties);
The customer property is not passed in the above as it is not mandatory.
Example of a call with Customer Properties included:
let productProperties = {
ProductId : 'Prod1234',
Name: 'Product Name goes here'
}
let customerProperties = {
EmailAddress: 'joe@bloggs.com'
}
distil.trackProduct(productProperties, customerProperties);
Track Content
When a user views a Content page on the website, this information can be captured using the trackContent event function, which needs to be added to all pages where this type of activity occurs.
When this event function is called, the Distil Tracking code will also automatically pass a Context object as explained in the section above.
Call the event function:
distil.trackContent(contentProperties, customerProperties, [additionalOptions]);
Pass the following arguments to the function:
Argument | Data Type | Description |
contentProperties | JSON Object | A JSON Object containing all of the content properties that you wish to record, whether these are standard or custom. Distil will automatically try to recognise the properties sent based on the Property Name (see table below). Any properties that Distil does not recognise will be saved and will be available within Distil as Custom Attributes. |
customerProperties | JSON Object |
A JSON Object containing all of the other Customer properties to record for this event. The customerProperties object is not mandatory and can be omitted, but if the object is supplied then at least one of the identifying properties for the Customer must be included (CustomerId or EmailAddress). See the CustomerProperties Object properties section above for details of this object. Note that when used within this function, customerProperties does not support custom properties: any properties that do not match the standard Property Names will be discarded and not saved. |
additionalOptions | JSON Object |
See Additional Object Properties section below for further details |
ContentProperties Object properties
Note that some of the properties of contentProperties are mandatory.
Property Name | Type | Description | Mandatory |
ContentId | String | The ID of the Content | Yes |
Title | String | The title of the Content | Yes |
ContentType | String | The Type of Content | No |
ThumbnailUrl | String | The URI to a thumbnail image for the content | No |
FullImageUrl | String | The URI to the full image for the content | No |
PublicUrl | String | The URI to the content | No |
Precis | String | Description for the content | No |
PublishedOnUTC | Date (String) | Date of PublishingNeed to be in the format : 'yyyy-MM-dd HH:mm:ss' i.e. '2021-05-25 11:34:01' | No |
ExpiresOnUTC | Date (String) | Date the content expiresNeed to be in the format : 'yyyy-MM-dd HH:mm:ss' i.e. '2021-05-25 11:34:01' | No |
KeyWords | String | List of comma separated keywords for the content | No |
Available | Boolean | A boolean indicating whether the content is currently available | No |
Examples
Example of call with only mandatory fields:
let contentProperties = {
ContentId: 'Cont1234',
Title: 'Content Title goes here'
}
distil.trackContent(contentProperties);
The customer property is not passed in the above as it is not mandatory.
Example of a call with Customer Properties included:
let contentProperties = {
ContentId: 'Cont123',
Title: 'Content Title goes here'
};
let customerProperties = {
EmailAddress: 'joe@bloggs.com'
};
distil.trackContent(contentProperties, customerProperties);
Track Order
When a user places an order on the website, this information is captured using the trackOrder event, which needs to be added to all pages where this type of activity occurs.
When this event function is called, the Distil Tracking code will also automatically pass a Context object as explained in the section above.
Call the event function:
distil.trackOrder(orderProperties, customerProperties, [additionalOptions]);
Pass the following arguments to the function:
Argument | Data Type | Description |
orderProperties | JSON Object | A JSON Object containing all of the order properties that you wish to record, whether these are standard or custom. Distil will automatically try to recognise the properties sent based on the Property Name (see table below). Any properties that Distil does not recognise will be saved and will be available within Distil as Custom Attributes. |
customerProperties | JSON Object |
A JSON Object containing all of the other Customer properties to record for this event. The customerProperties object is not mandatory and can be omitted, but if the object is supplied then at least one of the identifying properties for the Customer must be included (CustomerId or EmailAddress). See the CustomerProperties Object properties section above for details of this object. Note that when used within this function, customerProperties does not support custom properties: any properties that do not match the standard Property Names will be discarded and not saved. |
additionalOptions | JSON Object |
See Additional Object Properties section below for further details |
OrderProperties Object properties
Note that some of the properties of orderProperties are mandatory.
Property Name | Type | Description | Mandatory |
OrderId | String | The Order ID | Yes |
OrderLineItems | JSON | See OrderLineItems object definition below for the object properties. | Yes |
TotalOrderValueExTax | Decimal | This is the Total Order Value excluding any Tax. The value should be in the same Currency as specified in the Currency Attribute. | No |
TotalOrderValueIncTax | Decimal | This is the Total order Value including Tax. | No |
PaymentMethod | String | Free text string for you to specify the Payment method. | No |
Currency | String | ISO Currency Code. | No |
BillingAddress | JSON | Address Object – see definition below for object properties | No |
DeliveryAddress | JSON | Address Object – see definition below for object properties | No |
OrderLineItems Object Properties
Note that some of the properties of orderLineItems are mandatory.
Property Name | Type | Description | Mandatory |
OrderExternalId | String | The Order Id (same as the OrderId property in the OrderProperties object) | Yes |
ProductId | String | This should match a Product Id from the Product Data | Yes |
OrderLineItemId | String | The unique line item ID (can be a concatenation of the OrderExternalId and ProductId if the system does not have such a concept) | No |
Name | String | The Name of the product | No |
Url | String | URL to the Product page | No |
Qty | Integer | This is the Qty of the Product in this Line Item | No |
PriceExTax | Decimal | The price of the item excluding tax | No |
PriceInTax | Decimal | The price of the item including tax | No |
ThumbnailUrl | String | URL to the Product Thumbnail | No |
FullImageUrl | String | URL to the Product image in full | No |
Categories | Array (String) | An array of Categories for the product | No |
BillingAddress and DeliveryAddress Object properties
Property | Type | Description | Mandatory |
Title | String | Title of the Customer | No |
FirstName | String | First Name of the Customer | No |
LastName | String | Last Name of the Customer | No |
Line1 | String | Line 1 of the Address | No |
Line2 | String | Line 1 of the Address | No |
Line3 | String | Line 1 of the Address | No |
Town | String | Town/City for the address | No |
Region | String | Region of the address | No |
Country | String | Country for the Address | No |
Postcode | String | Postcode of the Address | No |
Phone | String | The Customer’s phone number | No |
Company | String | The name of the Company | No |
Examples
Example of call with only mandatory fields
let orderProperties = {
OrderId: 'Ord1234',
OrderLineItems: [{
OrderExternalId: 'Ord1234',
ProductId: 'ABC-1234'
}]
};
let customerProperties = {
EmailAddress: 'joe@bloggs.com'
};
distil.trackOrder(orderProperties, customerProperties);
Track Event
Sometimes you may wish to capture data on an event that doesn't fit into the standard Distil event functions described above. Distil supports custom Tracking data capture through the trackEvent event function.
Call the event function:
distil.trackEvent(eventName, eventValue, [eventCustomProperties], [customerProperties], [additionalOptions]);
Pass the following arguments to the function:
Argument | Data Type | Description |
eventName | String | The name of the event - a short descriptive name that identifies the event. |
eventValue | Object | A value for the event - this can be any value. |
eventCustomProperties | JSON Object | A JSON Object containing all of the custom properties that you wish to record for this event. These will be saved and will be available within Distil as Custom Attributes. |
customerProperties | JSON Object |
A JSON Object containing all of the other Customer properties to record for this event. The customerProperties object is not mandatory and can be omitted, but if the object is supplied then at least one of the identifying properties for the Customer must be included (CustomerId or EmailAddress). See the CustomerProperties Object properties section above for details of this object. Note that when used within this function, customerProperties does not support custom properties: any properties that do not match the standard Property Names will be discarded and not saved. |
additionalOptions | JSON Object |
See Additional Object Properties section below for further details |
EventCustomProperties Object properties
As this event function records a custom event, this object contains only custom properties. The object must contain at least one property. Replace the Property Names (e.g. Property1) with your own custom names.
Property Name | Type | Description | Mandatory |
Property1 | String | A custom property name and value pair. | Yes |
Property2 | String | A custom property name and value pair. | No |
Property3 | String | A custom property name and value pair. | No |
... |
Additional Object Properties
Overriding Current Page Path
Each of the functions mentioned above also have the option of overriding the current page path - to indicate that a user is on a different page to the one indicated in the URL. This is especially useful for Single Page Applications where the URL does not change and the page does not fully reload as they navigate around the site.
To do this - a property called pageUrl needs to be passed in a JSON object block as the final parameter in the function call.
The format of the parameter to pass into the function calls is the same for each and looks as follows (several examples of different paths given - to show the flexibility of format allowed):
{pageUrl : 'path-to-represent'}
{pageUrl : '/path-to-represent'}
{pageUrl : '/path/to/represent'}
{pageUrl : '/path/to/represent?QS=1'}
{pageUrl : 'https://website.com/path/to/represent?QS=1'}
If the path is specified without the domain at the beginning (perfectly valid) - then the current domain will be used and prepended to the path to create the full URL.
Therefore - the following 3 examples on the site www.testwebsite.com will produce the same URLs in the tracking :
{pageUrl : 'path-to-represent'}
{pageUrl : '/path-to-represent'}
{pageUrl : 'https://www.testwebsite.com/path-to-represent'}
Will all produce the path: https://www.testwebsite.com/path-to-represent
Query strings
Any query string values in the original path will also be preserved and appended to the end of the new URL.
Therefore - if the original URL is https://www.testwebsite.com?utm_source=google then the following will apply:
Page Url Param | Full result |
---|---|
{pageUrl : 'path-to-represent'} | https://www.testwebsite.com/path-to-represent?utm_source=google |
{pageUrl : '/path-to-represent'} | https://www.testwebsite.com/path-to-represent?utm_source=google |
Spoofing
While it is possible to specify a full path including website in the pageUrl parameter, we do not allow you to specify a different domain than the one the request is actually coming from. This is to prevent spoof calls. If a parameter with a different domain is used, then it will be ignored and the original URL will be maintained in its place.
Examples for all tracking calls
trackPage
let dataLayer = {
additionalProperties: {
pageUrl: 'new-path-for-request'
}
};
//Call track page - will pass all default contextual information for the page
distil.trackPage();
//Call track page with additional behaviour modification
distil.trackPage(dataLayer.additionalProperties);
identifyCustomer
let dataLayer = {
customerProperties: {
EmailAddress: 'joe@bloggs.com',
GDPRStatus: {
MarketingSubscribed: false
}
},
additionalProperties: {
pageUrl: 'new-path-for-request'
}
};
//Standard call
distil.identifyCustomer(dataLayer.customerProperties);
//With additional behavioural properties
distil.identifyCustomer(dataLayer.customerProperties, dataLayer.additionalProperties);
trackProduct
let dataLayer = {
productProperties: {
Name: "Test",
ProductId: "0001",
Available: true
},
customerProperties: {
EmailAddress: 'joe@bloggs.com',
GDPRStatus: {
MarketingSubscribed: false
}
},
additionalProperties: {
pageUrl: 'new-path-for-request'
}
};
//Only Product tracking info
distil.trackProduct(dataLayer.productProperties);
//No Customer info, but additional behavioural properties
distil.trackProduct(dataLayer.productProperties, {}, dataLayer.additionalProperties);
//With customer info as well
distil.trackProduct(dataLayer.productProperties, dataLayer.customerProperties, dataLayer.additionalProperties);
trackContent
let dataLayer = {
contentProperties: {
ContentId: 1,
Precis: 'some desc',
Title: 'Some Test Content',
},
customerProperties: {
EmailAddress: 'joe@bloggs.com',
GDPRStatus: {
MarketingSubscribed: false
}
},
additionalProperties: {
pageUrl: 'new-path-for-request'
}
};
//Only content tracking info
distil.trackContent(dataLayer.contentProperties);
//No Customer info, but additional behavioural properties
distil.trackContent(dataLayer.contentProperties, {}, dataLayer.additionalProperties);
//With customer info as well
distil.trackContent(dataLayer.contentProperties, dataLayer.customerProperties, dataLayer.additionalProperties);
trackOrder
let dataLayer = {
orderProperties: {
OrderId: "2345-2345",
TotalOrderValueExTax: 34,
Currency: "USD",
OrderLineItems: [{
OrderExternalId: "2345-2345-1",
ProductId: 23,
Qty: 32,
PriceExTax: 320.00
}]
},
customerProperties: {
EmailAddress: 'joe@bloggs.com'
},
additionalProperties: {
pageUrl: 'new-path-for-request'
}
};
//Only Order tracking info
distil.trackOrder(dataLayer.orderProperties, dataLayer.customerProperties);
//With additional behavioural properties
distil.trackOrder(dataLayer.orderProperties, dataLayer.customerProperties, dataLayer.additionalProperties);
trackEvent
let dataLayer = {
eventCustomProperties: {
size: 10
},
customerProperties: {
EmailAddress: 'joe@bloggs.com'
},
additionalProperties: {
pageUrl: 'new-path-for-request'
}
};
//Only Event info
distil.trackEvent('EventName', 'Event Value');
//Event info with additional properties
distil.trackEvent('EventName', 'Event Value', dataLayer.eventCustomProperties);
//Event info with additional properties and additional behavioural properties
// NOTE: Need the empty brackets to represent the blank customer properties
distil.trackEvent('EventName', 'Event Value', dataLayer.eventCustomProperties, {}, dataLayer.additionalProperties);
//Event info with additional custom properties, customer properties and additional behavioural properties
distil.trackEvent('EventName', 'Event Value', dataLayer.eventCustomProperties, dataLayer.customerProperties, dataLayer.additionalProperties);
Comments
0 comments
Article is closed for comments.
